300L 500L two vessel three tank electric beer brewing system


1. Simple description of used micro beer brewery equipment:

1) CE Certificate

2) Perfect turnkey solution

3) Easy operation

4) Competitive price

2. Detailed Description of brewing equipment:

The complete set of beer equipment Includes Malt mill, mashing system,

Fermenting system, CIP system, Refrigerator units,Electrical control cabinet and assorted pumps,valves etc.

We also can offer you filtering machine, filling line or bright beer tank if needed;

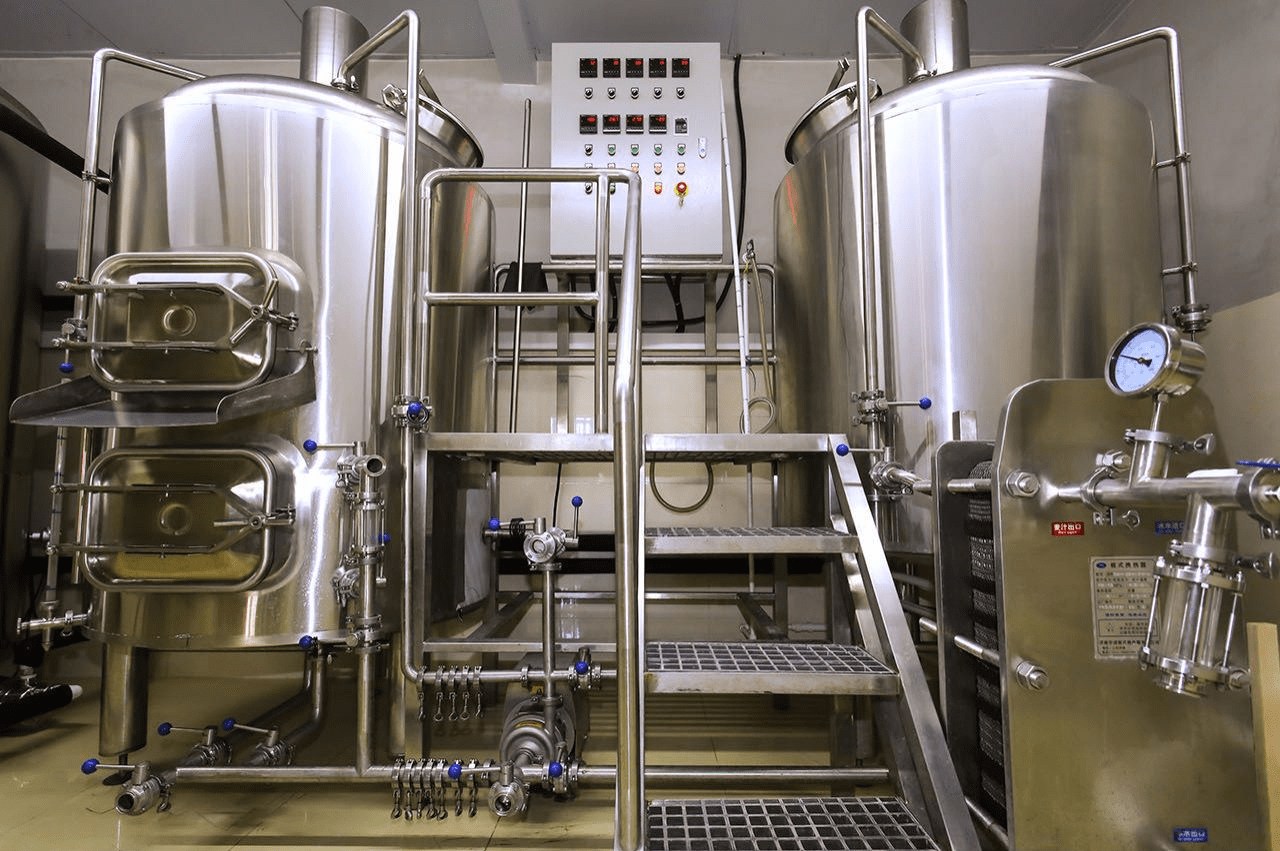

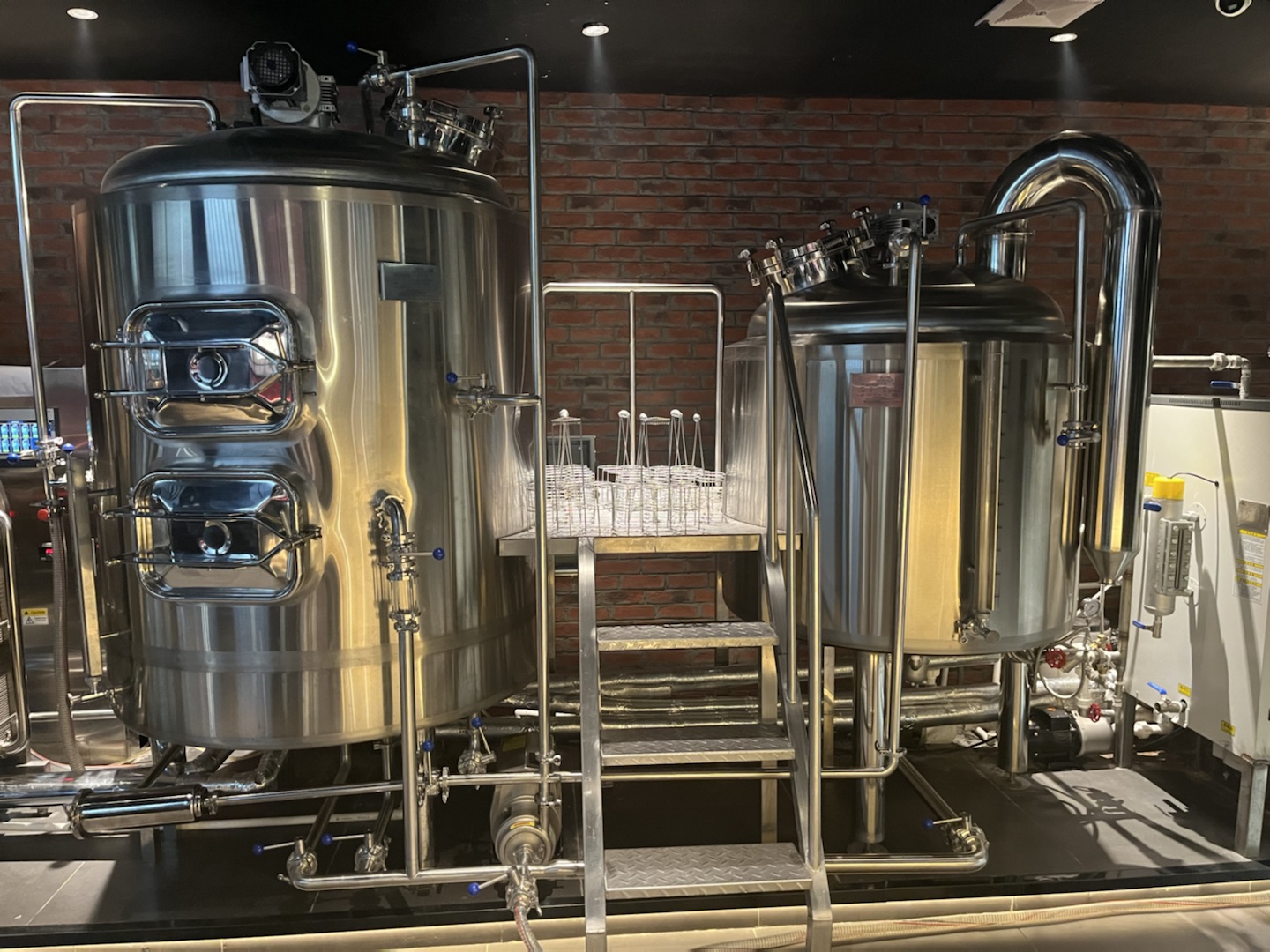

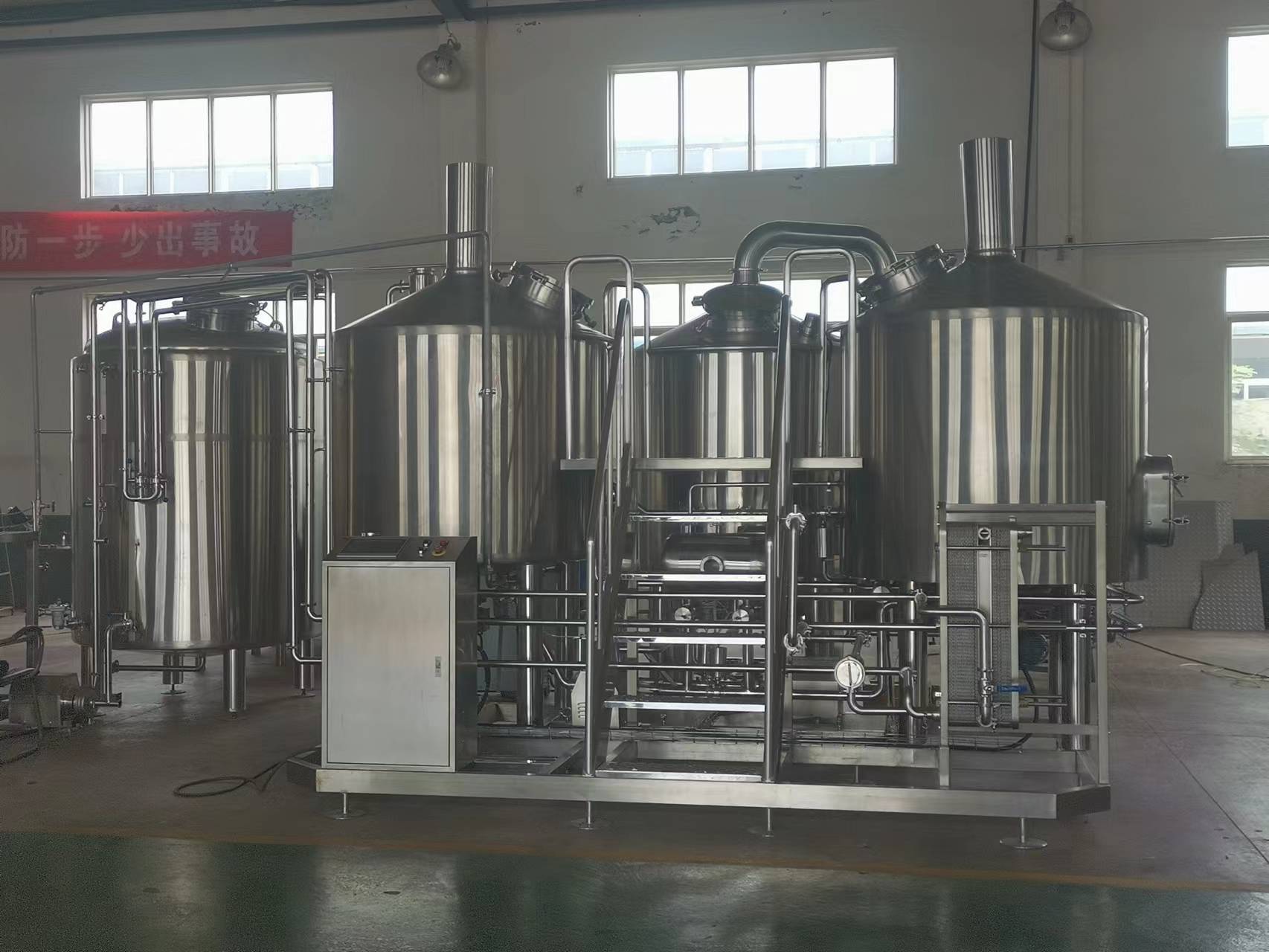

Brewhouse of 500L beer brewing equipment

1).2-vessel: mash/lauter tank and kettle/whirlpool tank Combination tank:mash/kettle/whirlpool, lauter, hot water tank for option;

2).Heating method:electricity heating/steam heating(electricity/LPG/diesel oil/nautral gas

Material: Interior stainless steel 3.0mm, exterior stainless steel/luxury red copper 2.0mm

3).Insulation layer: polyurethane or rockwool, thickness 80~100mm

Fermentation tank

1).jacket conical fermenter tanks/unitanks' capacity&quantity customized;

Stainless steel material, compression resistance design, design pressure 0.3Mpa, working  pressure 0.15Mpa, 48 hours pressure test  for both interior and cooling jacket;

  Polyurethane insulation and stainless steel cooling jacket, 60 degree bottom cone;

2).Beer storage tank: bright beer tank/serving tank, jacketed or non-jacketed, 150 degree bottom cone, with  carbonization device assort

3).Cooling: double stage cooling, cooling system for both heat exchanger and fermenter

4). Cleaning: 50L/100L CIP cleaning, movable with wheel

5). PID control: Single tank, single control



1.Three year quality guaranty, the machine with all the parts(excluding the consumables)

   shall be changed free of charge when problems happened during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agency price when you need replacement.

5.12 hours on line service each day, free technical support. We will solve your problems

    immediately by E-mail, fax, MSN, Skype ,telephone.

6. The English operation manual in electronic edition is included.

7. Machine has been adjusted before delivery.

8. Polishing

Polishing is vital for tanks. Tanks should be polished wholly inside and outside.

Therefore it can ensure there is no place for the bacteria to hide in tanks.

Our polishing system consists of auto and semi-auto polishing machine and manual polishing.

Each tank is polished three times and more polish for the key place.

9. Welding

Our argon central system for welding provides 100% pure argon to protect tanks from distorting during welding.
