Mill System:

1. Malt mill

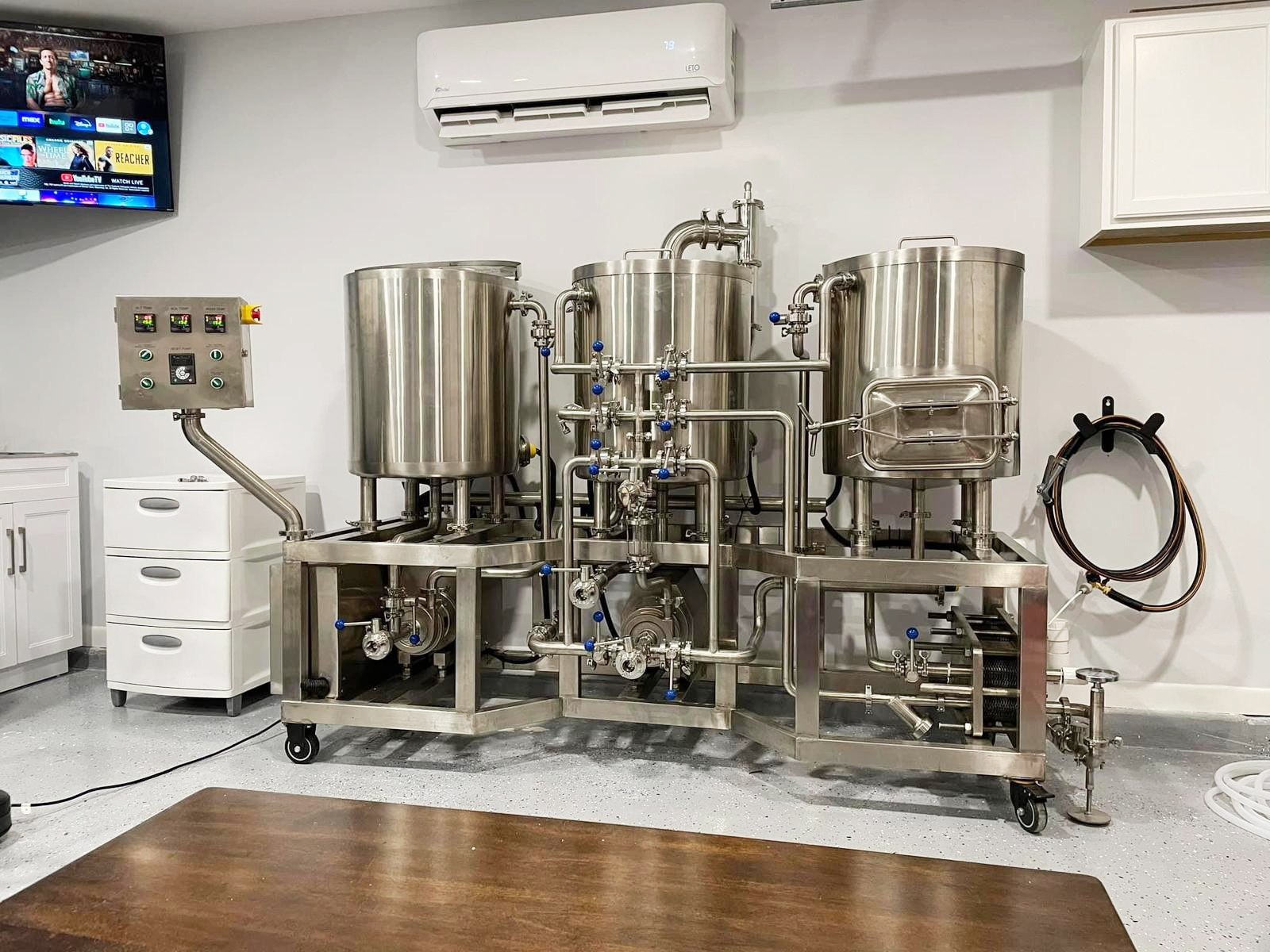

Brewhouse System:

1.Two vessel brewhouse: mash/lauter, kettle/whirlpool

2. Sanitary Stainless steel 304, Effective volume: 100L;

3.Heating method: electric heating

4.With HLT, electric heating

5.PID control: valves manually controlled, temperature automatically controlled

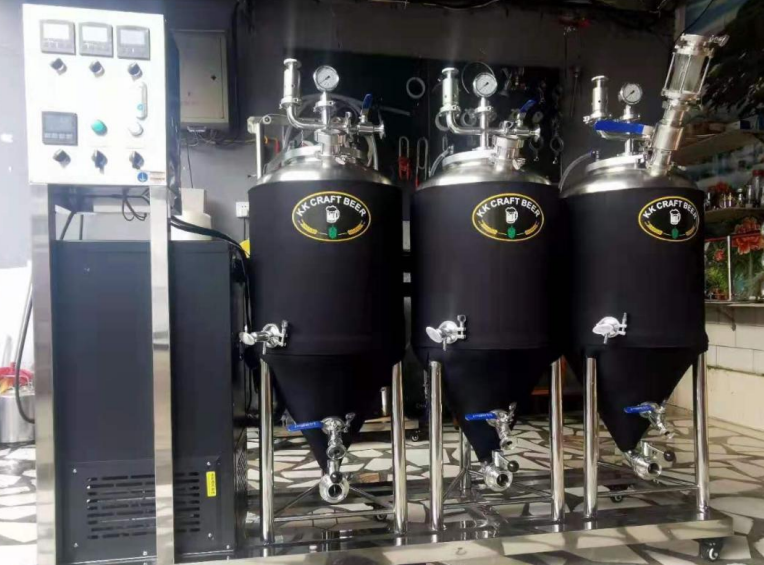

Fermentation system

1.Sanitary Stainless steel 304, conical vertical tank

2.dome top head; Surface brushed, welding line polish sanding light belt;

3.Polyurethane insulation, thickness: 100mm; inner body thickness 3mm, cladding thickness 2mm;

4. Safety valve, Side manhole; With rotary CIP spray balls and arm

5. Spunding valve, Pressure gauge;

6.Glycol solenoid valves, with screw assembly to adjust leg height

7.Complete with associated valves and fittings.

8. Carbonation stone as option

Cooling System

1.Sanitary Stainless steel 304

2. Glycol water tank with chiller

3. Glycol pump for circulation

4. PPR pipeline connection

CIP System

1.Alkali tank:Sanitary Stainless steel 304, Effective volume: 50L, Inner polished, outer sand polished, with one heating element,

2. Acid tank: Sanitary Stainless steel 304, Effective volume: 50L, Inner polished, outer sand polished

Control System

PLC system with fully furnished,fully functional,applicability,small size,light weight and low

energy consumption such charactors,It is with liquid crystal display,touch screen control.

PID control system is with high stability,openness,flexibility and coordination and ease

of maintenance such charactors.It adopts independent instrument display,control buttons and knobs.
