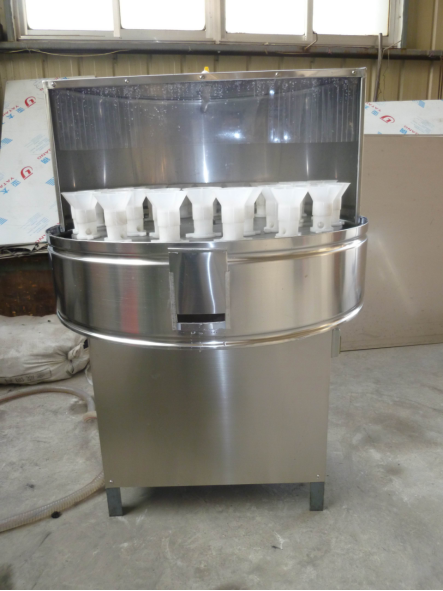

Semi automatic bottle washing machine

1. Technical parameters

1. Working voltage three-phase 220V

2. Motor power 0.37 kW

3. Water consumption 1 cubic meter/hour

4. Number of flushing heads: 32

5. Work efficiency 2000 bottles/hour

6. Total mass 100 kilograms

7. Workbench speed 1.2 rpm

8. External dimensions (length * width * height) 900 * 900 * 1300

2. Using method;

1.Before use, first check whether each bottle holder is securely connected,

whether the water outlet of the water storage tank is connected to the sewer, whether the water inlet pipe is installed correctly,

whether the motor wiring is intact, and whether the grounding wire is intact.

2. Connect the power supply, run the entire machine, and simultaneously load the bottle and turn on the main water inlet switch and spray switch.

3. Adjust the spray pressure and bottle inner wall flushing pressure through the spray switch and the main water inlet switch.

4. When it is found that individual pressure of the flushing bucket nozzle is insufficient or no pressure,

remove the plug on the water storage bucket, check whether there are foreign objects blocking the nozzle and inlet pipe,

whether the inlet pipe is leaking or folded, remove the flushing bottle holder, and open the inlet pipe to eliminate the fault.

5. When it is found that the flushing effect of the whole machine is not good, first check whether the water pressure is normal,

then unscrew the tightening nut, remove the upper valve body and check whether the two contacts are seriously worn,

and scratch the trench for regrinding and trimming.
