Keg filling and washing machine

Keg filling and washing machine

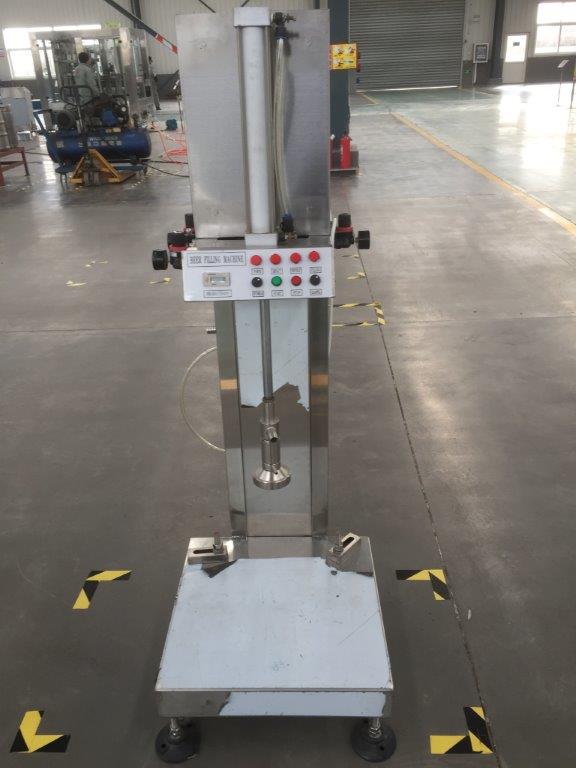

One head keg filling machine

Specification

Model	GZ03
Filing heads	1 head
Size of plat form160mm	500mm*600mm
Height of the plat form	160mm
Size of machine	560mm600mm1460mm
Weight	65kg
Keg size	5-50L
Production capacity	30-70kegs per hour
Rate of beer waste	＜1%

2.Technology specification

Pressure of the beer	0.2-0.3Mpa
Pressure of the air	0.6-0.8Mpa
Pressure of the CO2	0.1-0.2Mpa
Pressure of the cylinder	0.35-0.4Mpa
Voltage of the electricity	220V(can designed as customer s power requirement)

1. The main frame work:

The system consists of frame the electrical control system, solenoid pilot actuated valve, pneumatic components. Systems beer back system componrnts.

2. Features: The equipment is designed for all kinds of beer storage containers (including stainless steel, plastic storage barrels and zhapi barrels) filling.

The machine can automatically finish the filling work.

One head keg washing


Model	QX-1
Height of the platform	660mm
Size of the machine	900mm1530mm1590mm
The maximum stroke of the stopcock	300mm
Net weight	120kg
Capacity	30-70kegs/h
Air source pressure	0.6-0.8Mpa
Steam pressure	0.2Mpa
CO2 pressure	0.2-0.3Mpa
Power	0.55kw
Voltage of the electrice power	AC 220v 50HZ (can be adjusted as customers power requirement)
Washing type	Inversion
The barrel size	5-50L

Technology parameter

1) Equipped with high powered water pump, clean completely.
2) Set the program freely, easy to operate.
3) Equipped with CO2 prepare presses function.
4) Save 50% water in the cleaning process.
5) Unique water temperature control device, clean with lye for better cleansing.
6) Steam sterilization, safe and reliable, is suitable for washing stainless steel barrel.
7) Polyamine ester rubber plate, the localization is safe and reliable.
