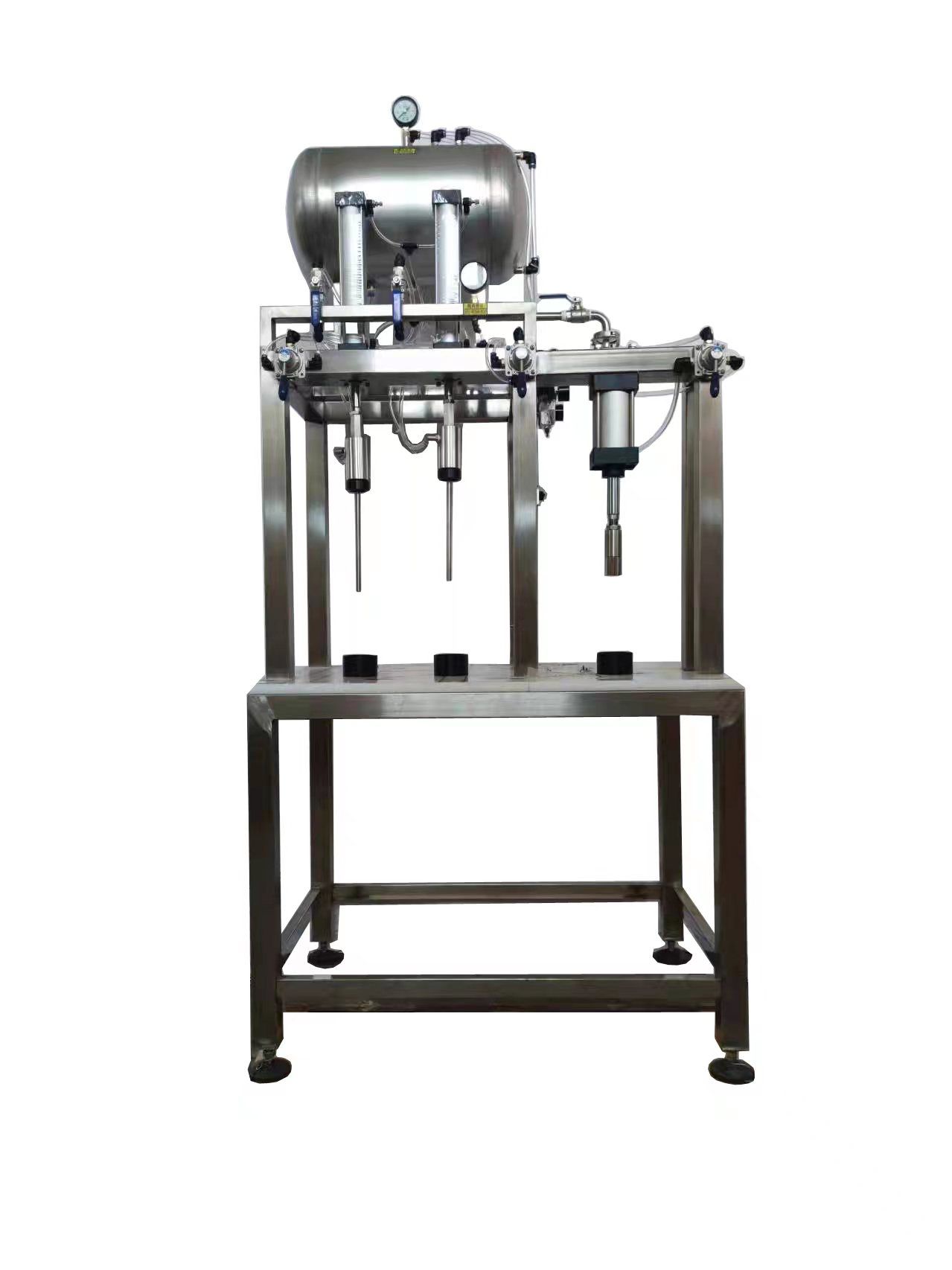

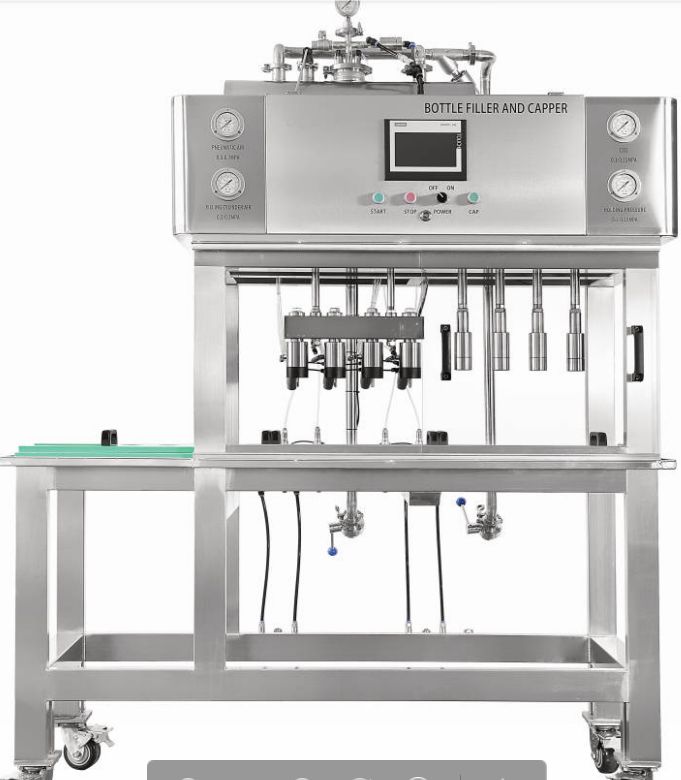

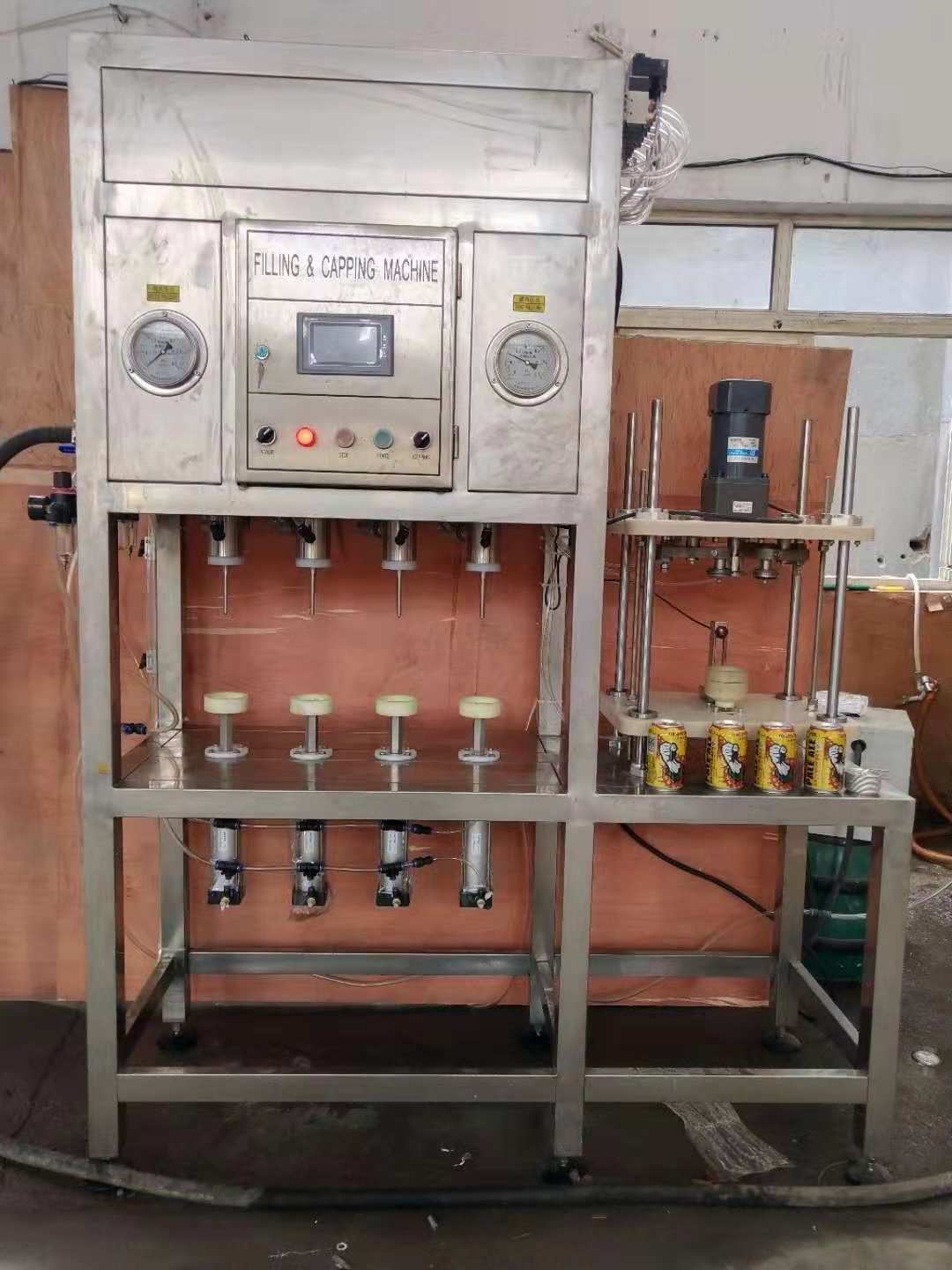

four head of bottle filling and sealing machine

Filling valve heads：4

Capping heads：4

Capacity: 200 bottle per hour

Applicable bottle：

bottle height 200～500mm；

Diameter Φ52～Φ84mm

Equipment Outer Dimensions :1550*850*2200mm

Packing dimension:1730*1000*2330mm

Weight:300KG

Suitable for 300ml , 500ml bottle with 26mm and 29mm cap

Automatic control by PLC, all parameters can be adjusted.

Filling and capping process can be finished in this machine at one time.

With CO2 purge and pressurization and function.

Adopt isobar filling method and with unique pressure maintaining system，performance stable and reliable, beer loss minimum.

With pressure compensator, to guarantee a stable filling process.

Working process

Fix the bottles--CO₂ Purge-- CO₂ pressurizing -- filling -- pressure stabili
