• 12

  05

  2023

•

2000L bright tank installed in UK

♦ Function:Beer maturation/conditioning/serving/filtered beer receiving ♦ Tank Capacity: 2000L (+20% Headspace minimum) ♦ Interior Shell: SUS304 full welded; TH=3mm ♦ Exterior Shell:SUS304 full welded; TH=2mm ♦ 100% TIG welding with pure argon gas shield ♦ Interior Finish: Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional) ♦ Exterior Finish: Oil brushed finish（2B, 8K Mirror finish optional) ♦ Interior full polished to 0.2~0.4 μm without dead corner ♦ Insulation: TH=80mm with low thermal conductivity PU ♦ Cooling: 35% Glycol liquid -5℃ ♦ Cooling Jacket: Dimple plate on bottom and side wall, welded without over burning ♦ Jacket test by water and gas, 5bar/75psi for 1hour, 3.5bar/52psi for 48 hours ♦ Jacket Working Pressure: < 2bar/30psi ♦ Tank leakage test by water and gas, 4bar/60psi for 1hour, 2.5bar/37.5psi for 48 hours ♦ Tank Working Pressure: ≦ 2bar/30psi ♦ Sanitary side mounted oval manhole with pressured door (Top mounted available) ♦ Top mounted double clamp 360° rotary CIP spraying ball and port, 1pcs ♦ CIP arm with four-way connection and butterfly valve ♦ Mechanical safe valve PVRV 2bar/30psi on top (1bar/15psi available) ♦ Full sanitary sampling valve with EPDM seal ♦ Carbonation port with CO2 dissolved stone 0.22um ♦ Hydraulic shock pressure gauge on CIP arm （Diaphram type for optional) ♦ Sanitary level tube and valves ♦ Discharge arm with butterfly valve, Removable and easy to clean ♦ Sanitary welded thermowell for high accuracy temperature sensor 1pcs ♦ Glycol water in/out port on side wall, Thick wall pipe thread (Top or bottom design available) ♦ Glycol water in/out port on cone, Thick wall pipe thread (Top or bottom design available) ♦ 4pcs completely SUS304 legs with braces ♦ 4 sets heavy duty foot pad with up-down and slop adjustable

• 20

  04

  2022

•

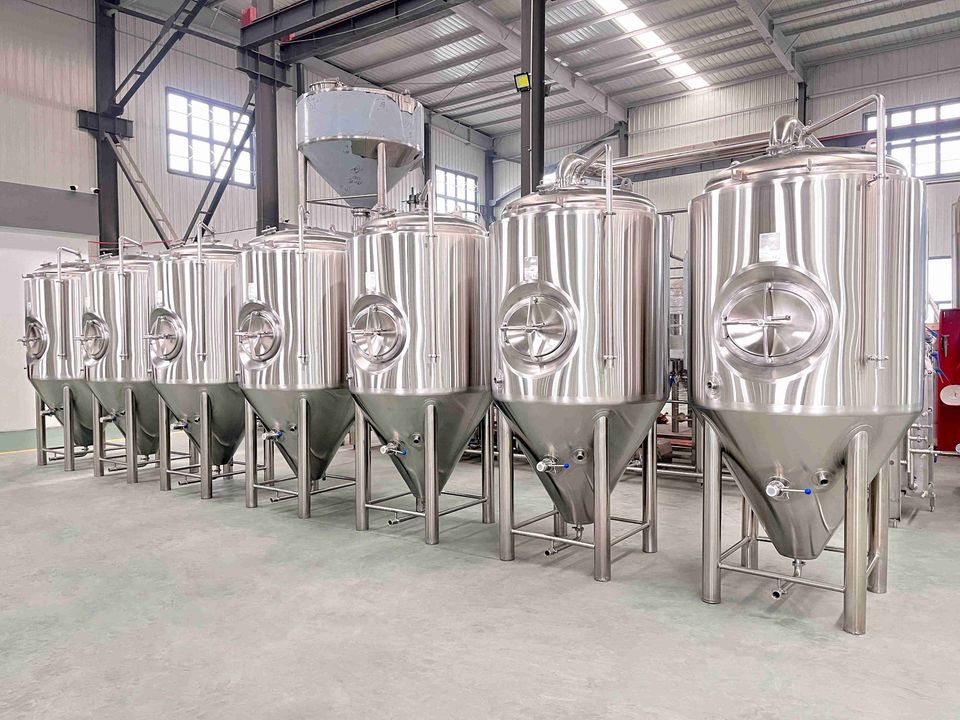

7BBL unitank installed in Texas, USA

♦ Function：Wort Fermentation or maturation ♦ Tank Capacity: 1000L (+25% Headspace minimum) ♦ Interior Shell: SUS304 full welded; TH=3mm ♦ Exterior Shell:SUS304 full welded; TH=2mm ♦ 100% TIG welding with pure argon gas shield ♦ Interior Finish: Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional) ♦ Exterior Finish: Oil brushed finish（2B, 8K Mirror finish optional) ♦ Interior full polished to 0.2~0.4 μm without dead corner ♦ Insulation: TH=80mm with low thermal conductivity PU ♦ Cooling: 35% Glycol liquid -5℃ ♦ Cooling Jacket: Dimple plate on bottom and side wall, welded without over burning ♦ Top mounted double clamp 360° rotary CIP spraying ball and port, 1pcs ♦ CIP arm with four-way connection and butterfly valve ♦ CO2 blow-off arm with butterfly valve (Removable) ♦ Mechanical safe valve PVRV 2bar/30psi on top (1bar/15psi available) ♦ Full sanitary sampling valve with EPDM seal ♦ Hydraulic shock pressure gauge on CIP arm （Diaphram type for optional) ♦ Horizontal mounted rotating racking arm and port in cone with butterfly valve ♦ Discharge arm with butterfly valve, Removable and easy to clean ♦ Sanitary welded thermowell for high accuracy temperature sensor 1pcs ♦ Dry hopping port 4'' with solid end cap (Hops pitching tank for optional) ♦ Glycol water in/out port on side wall, Thick wall pipe thread (Top or bottom design available) ♦ Glycol water in/out port on cone, Thick wall pipe thread (Top or bottom design available) ♦ 4pcs completely SUS304 legs with braces ♦ 4 sets heavy duty foot pad with up-down and slop adjustable

• 28

  05

  2021

•

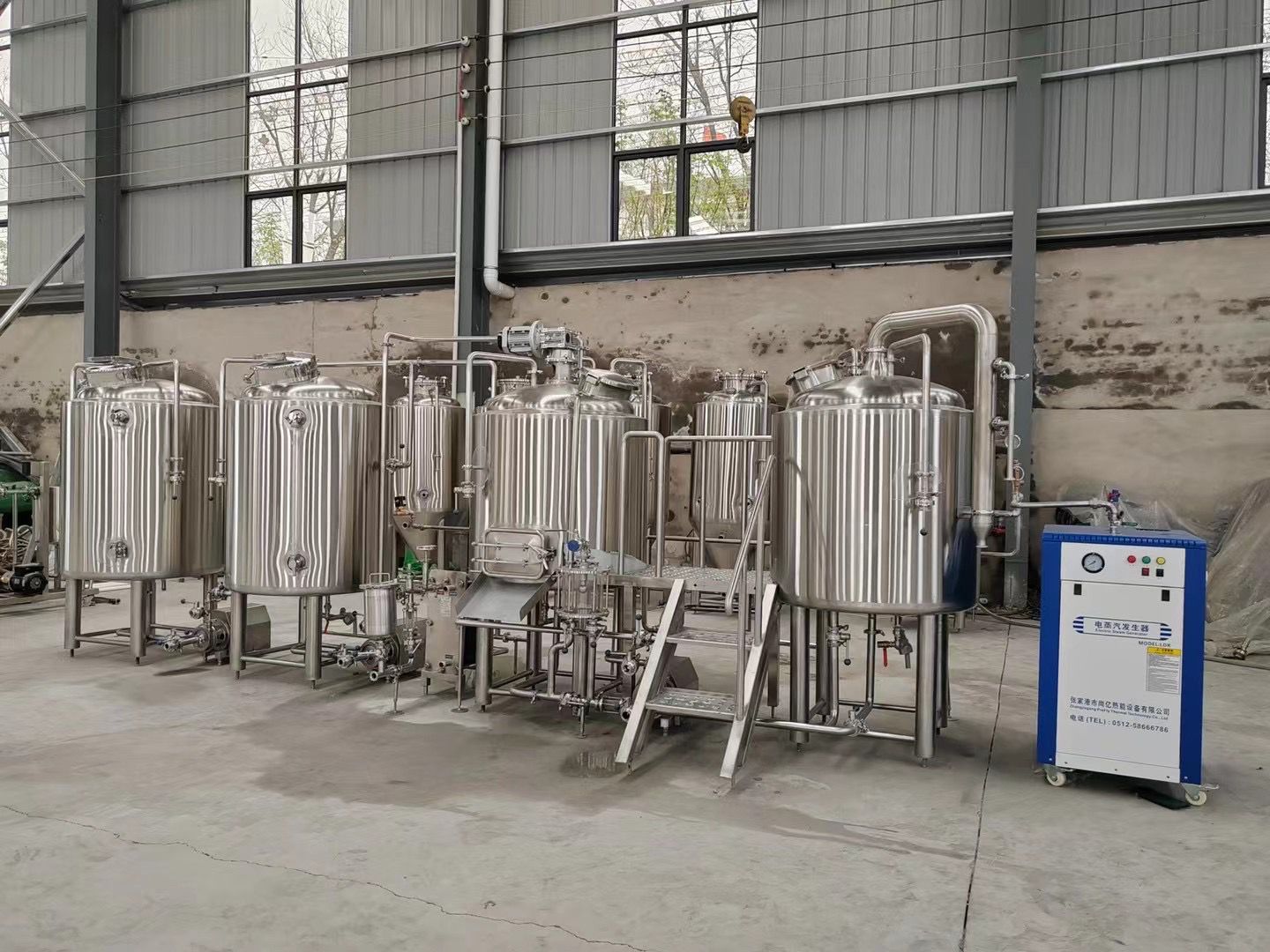

3.5BBL brewery installed in Alaska, America

3BBL brewery installed in Alaska, America-100kg/h mill-two vessel brewhouse-4*3BBL unitank-100L CIP-PID control
